What is Structured Cabling? A Guide to Modern Network Infrastructure

In a fast-paced Melbourne business or a high-performance modern home, your internal data network dictates how smoothly your day runs. It handles everything from your high-speed NBN connection and daily video conferencing to your commercial security systems and smart automation.

At WP Electrical, we know many properties still rely on the traditional data cabling approach to data. Every time a new desk, wireless access point, or security camera is added, a separate cable is loosely run through the ceiling straight back to the router. Over time, this method creates an unmanageable web of mismatched wiring that is highly vulnerable to signal interference, slow speeds, and unexpected network downtime.

To achieve maximum performance, modern commercial and residential properties rely on structured cabling. This is a highly engineered, standardised approach to designing and installing your entire data infrastructure.

What Exactly Is Structured Cabling?

Structured cabling is the design and installation of a complete and organised standard-compliant approach to a building's telecommunications infrastructure. Our team at WP Electrical installs structured cabling to ensure your workplace uses a unified system of cables (copper and fiber) and hardware to connect a wide range of services and devices such as computers, phones, security systems and Wi-Fi access points to a central location - or as we like to call it - the brain.

💡 WP Electrical Pro Tip: When we talk about "the brain" (the central server rack), location matters. Never tuck this rack into a tight, unventilated office cupboard or a kitchen area. Data hardware generates heat. Keeping it in a cool, well-ventilated space prevents your hardware from overheating and crashing your internet.

How Does Structured Cabling Work?

A structured cabling network works by creating a single and clean pathway for your internet to travel through. Instead of cables running all over the place, it channels your data through four quick steps:

1️⃣ The Internet Comes In

Your external internet connection (like your business NBN line) enters the property and hooks straight into your main modem inside the central data box.

2️⃣ Sorted at the Central Hub

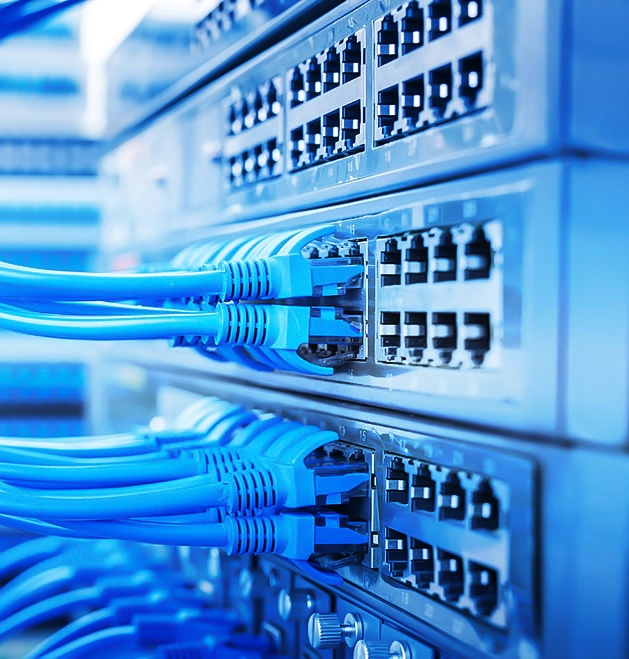

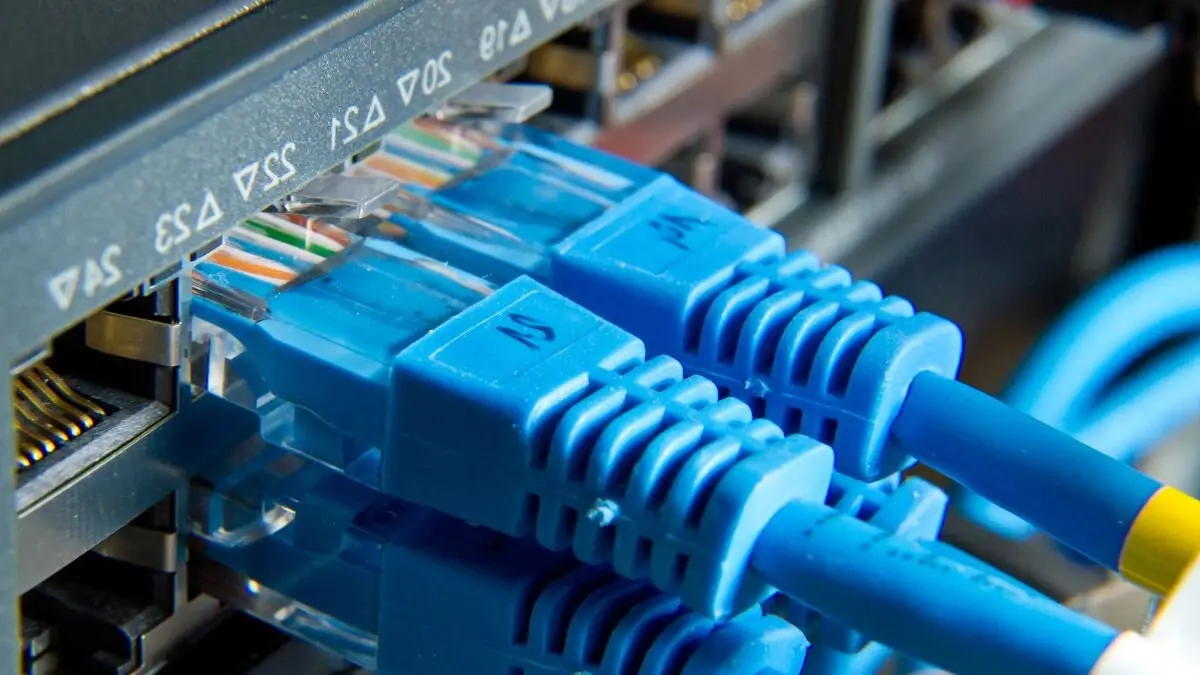

Inside that box, the internet is plugged into an organised row of numbered sockets. From there, a network switch neatly splits the signal up and pushes it out to the different rooms or desks that need it.

3️⃣ Moving Through the Walls

The internet signal leaves the box and travels through a package of high-speed cables hidden completely out of sight inside your ceilings, floors, or wall cavities.

4️⃣ Plug-And-Play at Your Desk

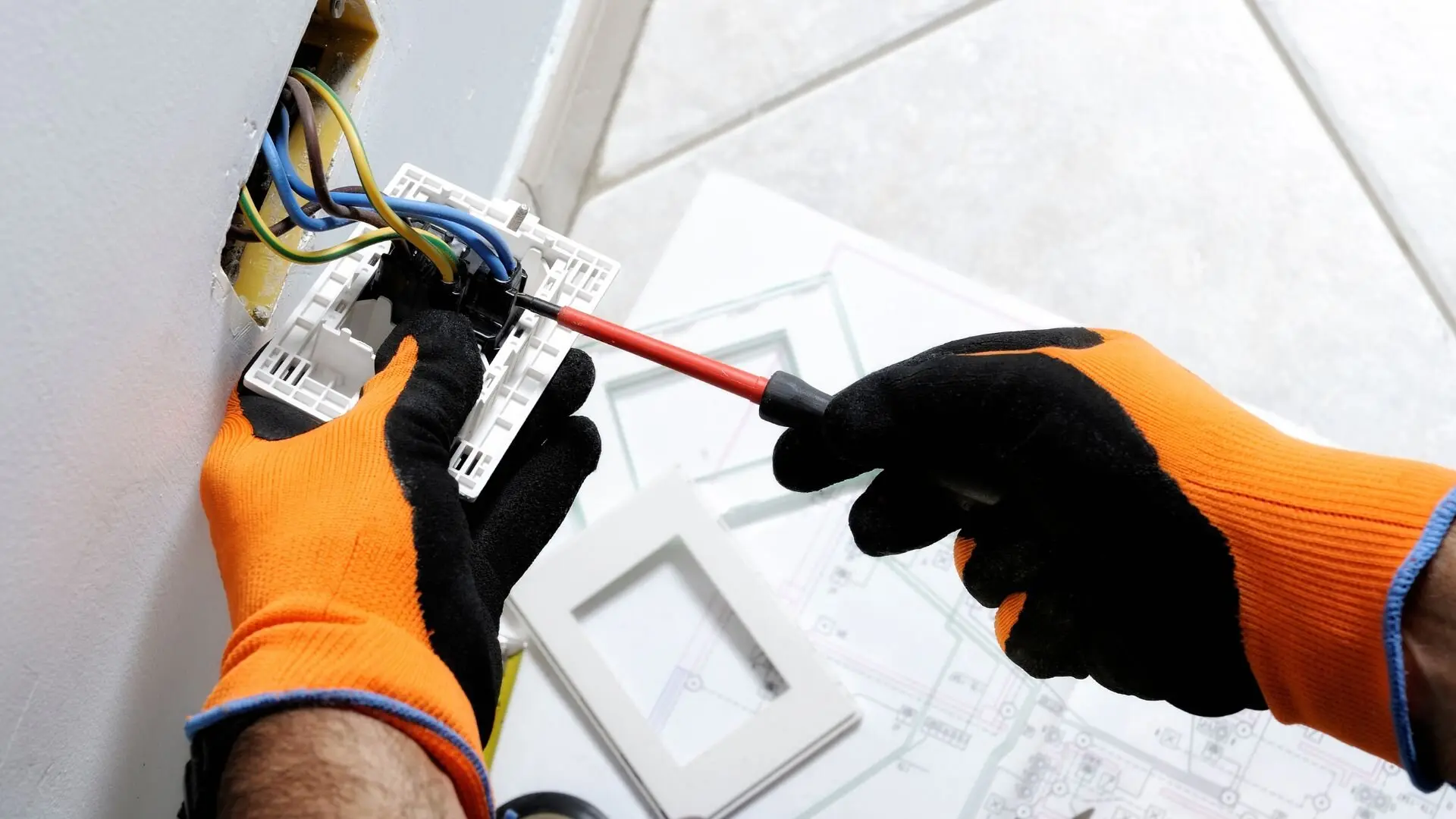

The hidden cable finishes its run at a clean plastic plug on your wall. You simply plug your computer, office phone, or security camera directly into that wall socket, giving you instant, maximum internet speeds with zero wireless drops.

It is a simple and highly efficient process because every single computer, printer, and camera has its own direct, shielded line back to the main data box.

What Is Structured Cabling Used For?

Structured cabling does not just connect your office computers to the internet, it's also the universal plug-in system for almost every piece of technology your Melbourne business uses to operate daily.

Our team at WP Electrical installs structured cabling setups to run:

✔️ Desktop Computers & Laptops: Providing a fast, secure, hardwired connection straight to your local servers and high-speed NBN.

✔️ VoIP Business Phones: Ensuring your office phone lines have a dedicated data path so your client calls don’t drop out or sound pixelated.

✔️ Commercial Security Systems: Linking your HD security cameras back to a central recording screen.

✔️ Smart Meeting Rooms: Powering your conference room video-calling screens, smart TVs, and digital presentation boards without relying on Wi-Fi.

✔️ Wi-Fi Access Points: Wiring the actual internet boxes mounted on your ceilings, making sure your wireless signal is strong and stable across the entire building.

✔️ Network Printers & Scanners: Connecting heavy-duty office copiers so every employee can print wirelessly from their desk instantly.

Structured Cabling Layout Zones (Where the Wires Go)

A professional network is divided into four basic sections depending on where it sits in your building and your office layout:

🛜 The Main Entry Point

The spot where the external internet line (like your NBN street connection) physically enters your building.

🛜 The Main Highway (Backbone)

The heavy-duty cables that connect your main internet server room to different floors, separate wings, or outer buildings.

🛜 The Local Branches (Horizontal)

The cables that run through the ceiling or floor on a single level, connecting the local data box straight to the wall plugs in that area.

🛜 The Desk Outlets

The final visible parts, the plastic plates on the wall and the short leads that plug directly into your computers, phones, or printers.

Structured Cable Types (What We Use)

Depending on your building's size, your budget, and how much speed you need, our professional Melbourne technicians install three types of cables:

🛜 Copper Cables (The Standard)

This is what runs to 95% of office desks and wall plugs. They are divided into speed ratings called "Categories." We use Cat6 for standard fast internet, and Cat6a for heavy-duty setups that need maximum speed over long distances without slowing down.

🛜 Fiber Optic Cables (The Speed Highway)

Fiber sends data using light instead of electricity. It is incredibly fast, can travel massive distances without losing speed and is completely immune to electrical interference. We use this to connect different floors or separate buildings together.

🛜 Coaxial Cables (Specialty Use)

You won't use these for standard office internet anymore, but they are still highly reliable for specific setups like digital security cameras (CCTV) and older TV systems.

Benefits of Structured Cabling Installation

There are many reasons why we would recommend structured cabling for your business. Our expert team has seen many businesses without it and the issues not having it can cause.

Structured cabling offers:

• Better organisation and scalability
• Reduced maintenance costs
• Improved network performance
• Easier troubleshooting

✅ Workplace Scalability

Instead of running messy new cords every time you hire staff or move a desk, everything is pre-wired to your central data box. You can add new devices, plug in extra office phones, or upgrade your internet speeds in seconds without cutting new holes in your walls.

✅ Lower Repair Bills

Messy cables get stepped on in roofs, crushed behind desks, or stuffed into hot cupboards and can overheat. A structured cabling network keeps all your expensive equipment locked away in a cooled data box where it stays safe and lasts years longer.

✅ Better Internet Speeds

When cheap data lines are thrown into a ceiling right next to hot power cables, electrical noise ruins your signal. Our licensed technicians install high-speed Cat6 cabling with proper separation from power wires, giving your business 100% stable internet with zero video freeze or lag.

💡 WP Electrical Pro Tip: This electrical noise is called "cross-talk." In Australia, data cables must legally have a specific physical clearance from standard electrical wires to prevent data corruption. Always ensure your installer is fully ACMA licensed, or you could face serious compliance fines and data lag.

✅ Easier to Fix Issues

If a computer loses its connection in a messy setup, finding the right wire takes hours of guessing. With a structured network, every single wall plug and data box socket is clearly numbered. If something goes wrong, we can find and fix that exact wire in seconds without shutting down the rest of your office.

What’s The Difference Between Structured Cabling and Traditional Data Cabling?

➡️ Traditional Data Cabling (The Old Way)

Traditional cabling is entirely reactive and over a few years, your cable management system turns into unmanageable and mismatched cables and cords. When one device drops offline, it becomes almost impossible to find the correct wiring to fix it. Just because it is cheap to install at first, doesn’t mean it will be cheaper in the long run.

➡️ Structured Cabling (The Modern Way)

Structured cabling is planned out as one single, neat system before any equipment is plugged in. Every single cord is cut to the perfect length, bundled neatly, and clearly numbered at both ends. All lines meet up inside a single, clean central data box. If you want to move a desk or fix a broken connection, you just look at the plug number and switch it to the main panel in three seconds. It keeps your internet running at full speed and saves your business thousands in long-term maintenance.

Let's Get Your Network Organised With Structured Cabling!

Network downtime means lost revenue. If your current office wiring is holding back your high-speed NBN connection or complicating your IT infrastructure, it's time to upgrade to a compliant structured cabling network built by our professionals.

Based locally in Melbourne, our expert and reliable team at WP Electrical provides professional structured cabling installation services backed by our strict lifetime labor guarantee. Call 0468 175 137 today to speak directly with an expert Melbourne data technician and receive a flat-rate quote.
